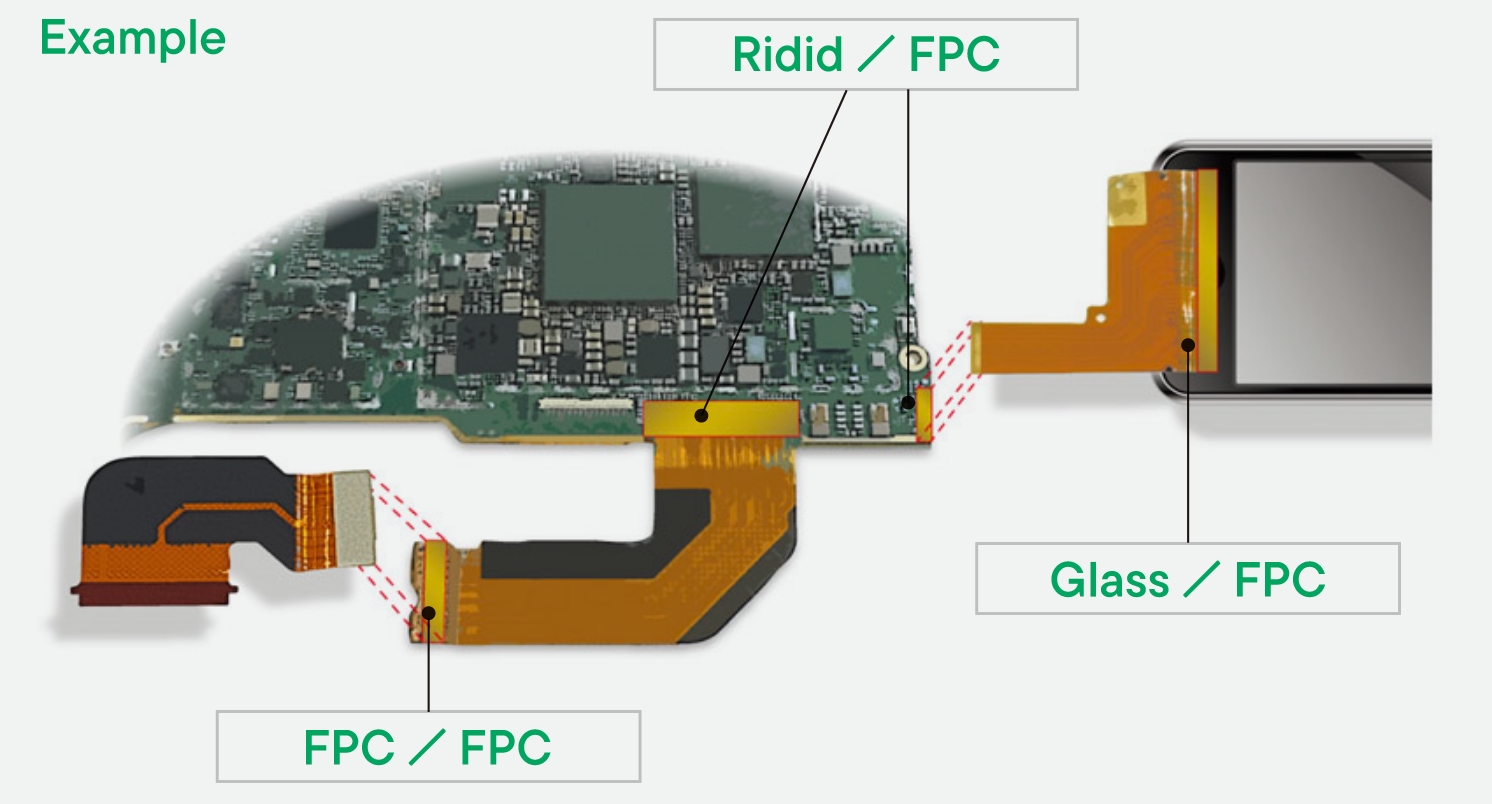

Anisotropic Conductive Adhesive
Substitute material for connectors and ACFs to meet high requirement in precision
Features
- ●Quick cure at low temperature
- ●Low pressure connection
- ●Connectable to lower profile patterns
- ●Stable electrical characteristics and high insulation reliability
- ●Easy reworkability
Photoimageable Coverlay Film
Photoimageable polyimide film with coexistence of high resolution and excellent bendability
Features
- ●Applicable to current PWB photolithography process
- ●Excellent heat resistance and bendability
- ●High resolution pattern formation with alkaline developing
- ●High insulation reliability for electromagnetic interference sheild
- ●UL-94 VTM-0 certified product
Application
- Flexible printed circuits (FPCs)
Photoimageable Interlayer Insulating Materials
Photoimageable insulating materials with high resolution and excellent electrical insulation
Features
-
●High resolution
Via opening below 6μmφ
6μmφ Via
-
●High insulation reliability
Insulating property above 300 hours （BHAST)
BHAST cross section view
Cu mapping image
-
●Excellent physical properties
Tg： 180℃Tensile modulus： 3.5GPa
-
●High adhension
Sputtering wiring adhesion above 6N/cm
-
●Developable in alkaline aqueous solution
-
Application
- Build-up boards, interposers, redistribution layer of wafer level packages

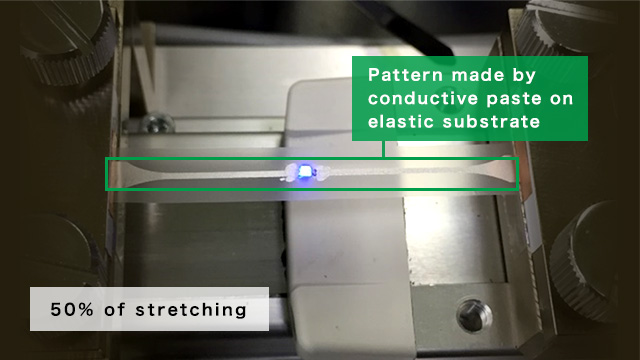

Stretchable Conductive Paste
Electro-conductive material for Stretchable electronics
Features
- ●Low temperature process
- ●Screen printable
- ●Highly stretchable conductors on elastic film substrates
- ●No crack after stretching
- ●Electrical conductivity is maintained after at stretching
Application
Stretchable conductors of electronic devises for "Wearable market", where "Stretchability" is required.

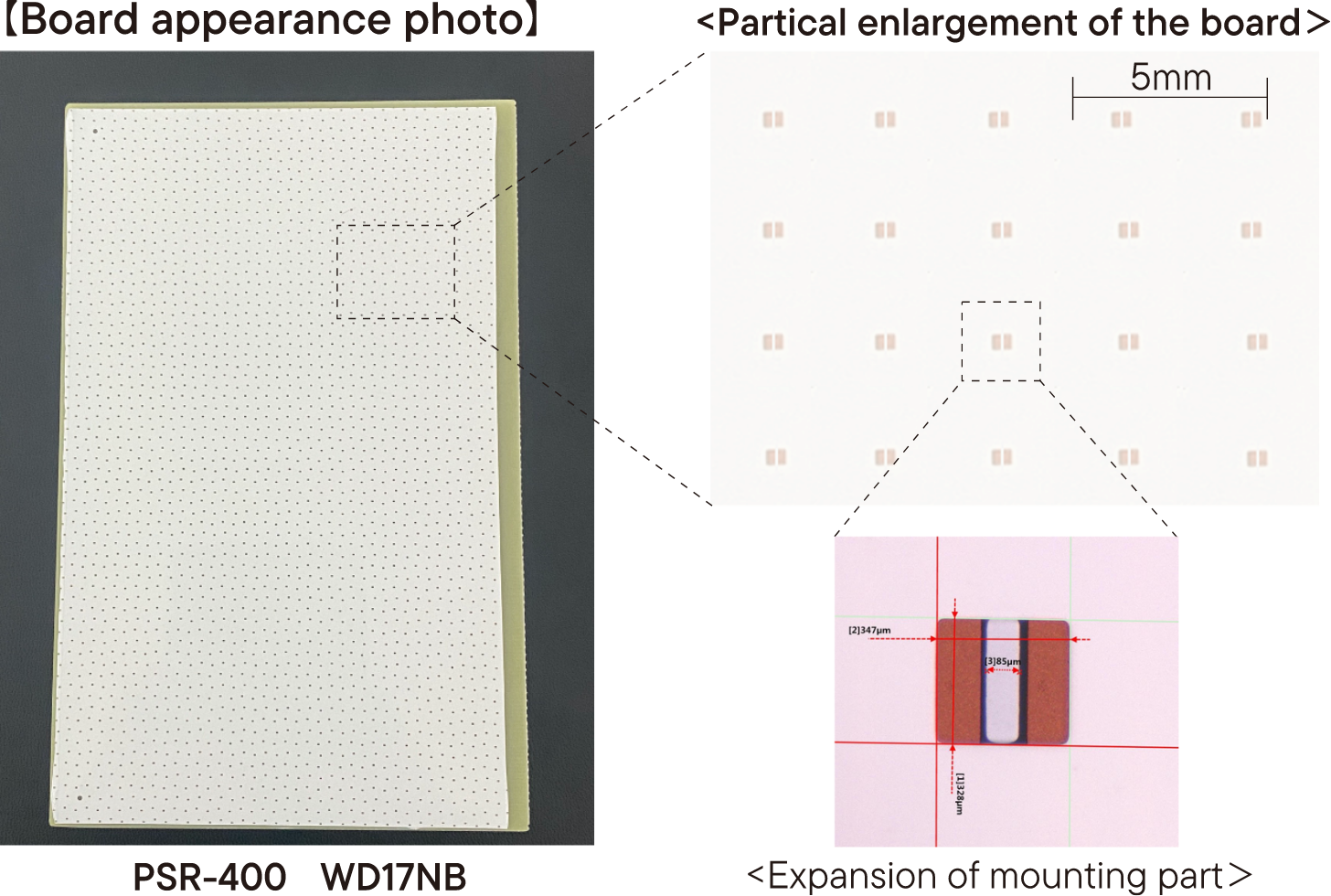

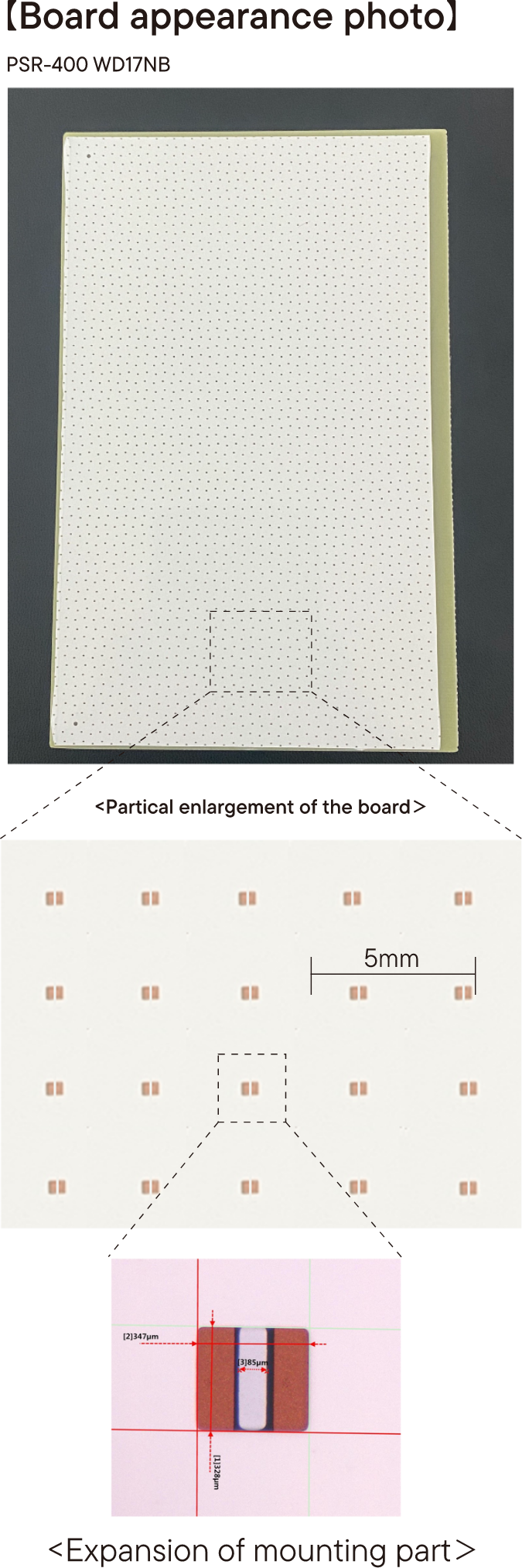

White Dry Film Solder Resist of Photo-imageable and high reflective type
Photo-imageable White Dry Film Solder Resist that obtains optimum high-reflection for Mini LED board.
Features
- ●High Reflectivity in visible light areas
- ●Response to Direct image exposure
- ●Excellent surface flatness and uniformity of high reflection
- ●Stable reflectivity even when exposed to Blue LED
Application
PCB For Mini LED, LED Backlight, LED lighting
